shanghai donsun TIG argon arc welding WS-200/250A/315/400ST/400/500 MOS TUBE IGBT
WS-200/250A/315/400ST/400/500
Multi-functional , high duty cycle

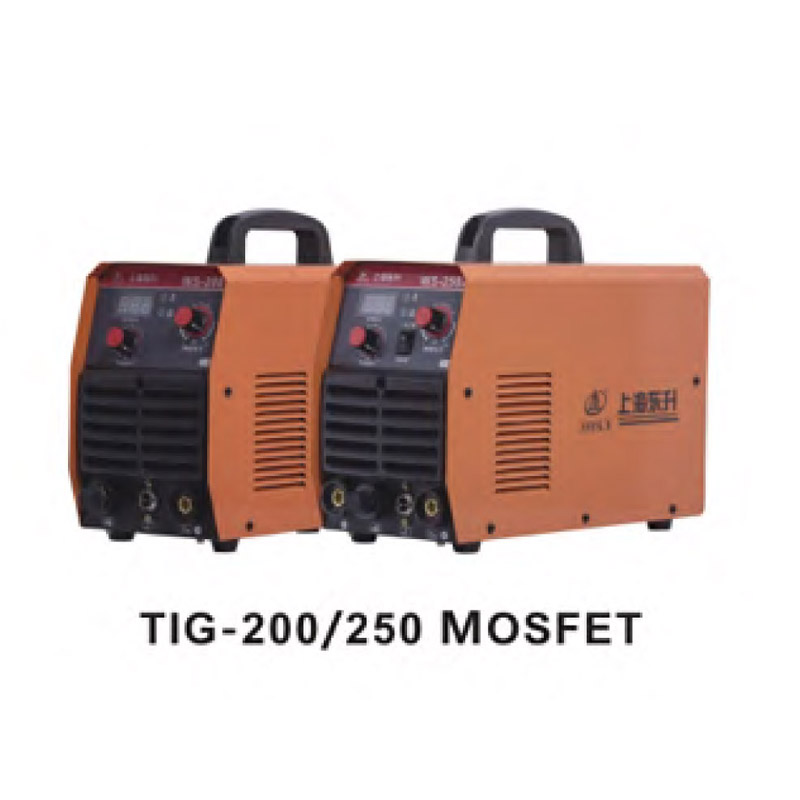

TIG-200/250A mosfet

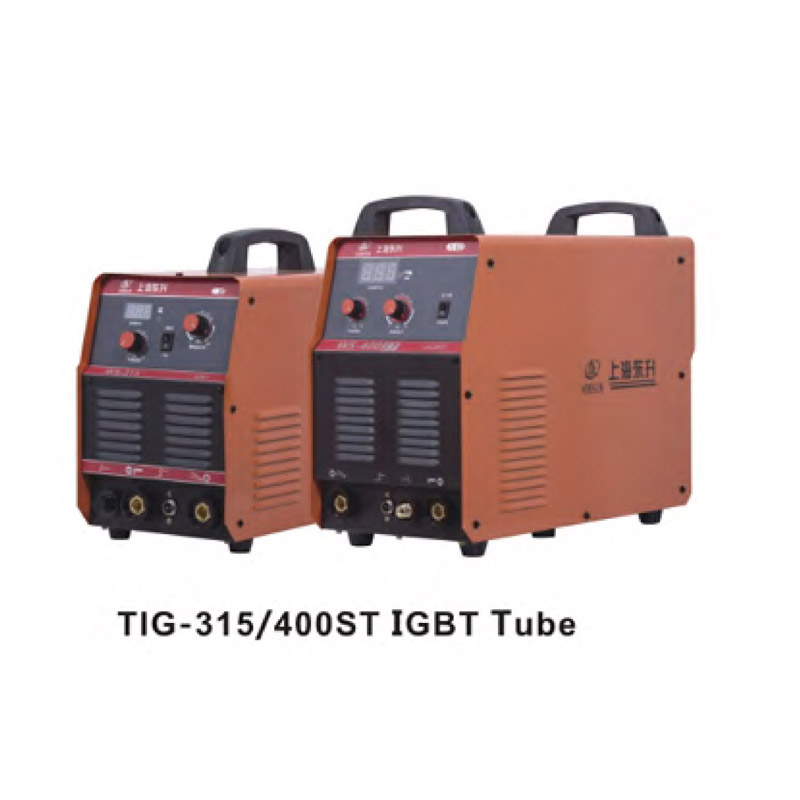

TIG-315/400ST IGBT TUBE

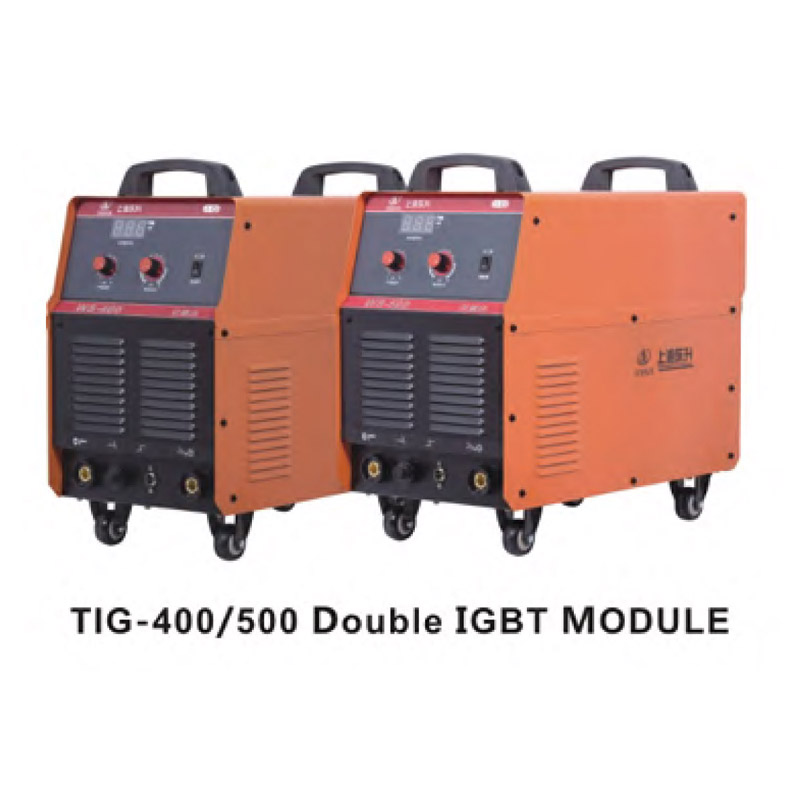

TIG-400/500 IGBT MODULE
TIG/MMA two function
Inverter IGBT technology
Over heat/over current protection
HF ARC
Intelligent air cooling
| Model | TIG-200 | TIG-250A | TIG-315 | TIG-400ST | TIG-400 | TIG-500 |
| Rated input voltage(V) | 1p 220V±15% | 1p 220V±15% | 3p 380V±15% | 1p 220v/380V±15% | 3P 380v±15% | 3P 380v±15% |
| Input Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated input capacity （KVA） | 4.5 | 6.3 | 11.3 | 13.8 | 13.8 | 15.8 |
| Duty cycle(%) | 45 | 45 | 60 | 45 | 60 | 60 |
| No-load voltage(V) | 56 | 56 | 76 | 76 | 76 | 76 |
| Current range (A) | 20-160 | 20-185 | 15-255 | 20-280 | 20-370 | 30-430 |
| Efficiency (%) | 85 | 85 | 80 | 85 | 80 | 80 |
| Power factor | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 |
| Plate thickness (mm) | 0.3-2.5 | 0.3-5 | 0.5-8 | 0.5-8 | 0.5-12 | 0.5-16 |
| Weight 9KG) | 6.8 | 8.5 | 10.3 | 16.8 | 19.3 | 21.3 |
| Dimension (mm) | 368*152*315 | 368*152*315 | 420*205*350 | 490*240*420 | 500*270*445 | 500*270*445 |
