shanghai donsun MIG MAG NBC-350 NBC-500 NBC-630igbt
MIG-350/500/630 IGBT series
Multifunctional, efficient welding Advanced IGBT Module technology,Tri-proof air tube design, high duty cycle, more reliable in bad environment. Simple and easy, with dual welding process MIG and MMA (Stick).
Adaptable with generator, suitable for outdoor welding
Easy to match welding current and voltage, to achieve high efficiency welding.
Trigger Control-4T (Latch) eliminates operator fatigue
With over-loading and over-heating protection, helps prevent machine damage.
Inverter technology
Intelligent air cooling
Over load protection
ARC/MIG dual functional

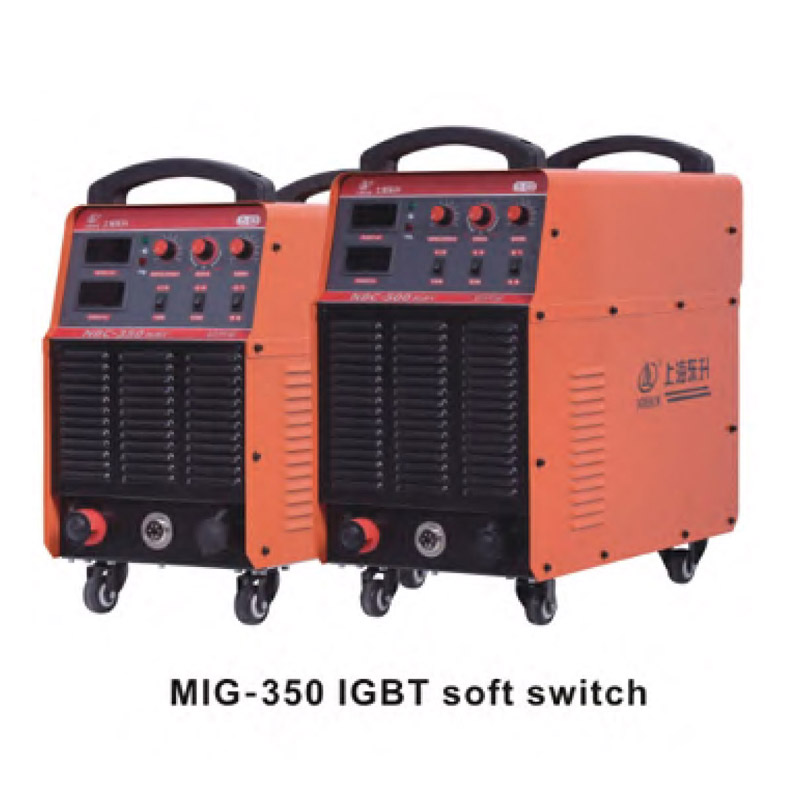

NBC-350 IGBTsoft swtich |
host machine | industrial gradeIGBTdualmodule(75A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high heavy duty rate,MMA/MAG 2 use | |
NBC-350 IGBTsoft swtichone set | 10Mwire,3M350Atorch,earth wire,regulator | industrial gradeIGBTdualmodule(75A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high heavy duty rate,MMA/MAG 2 use | |

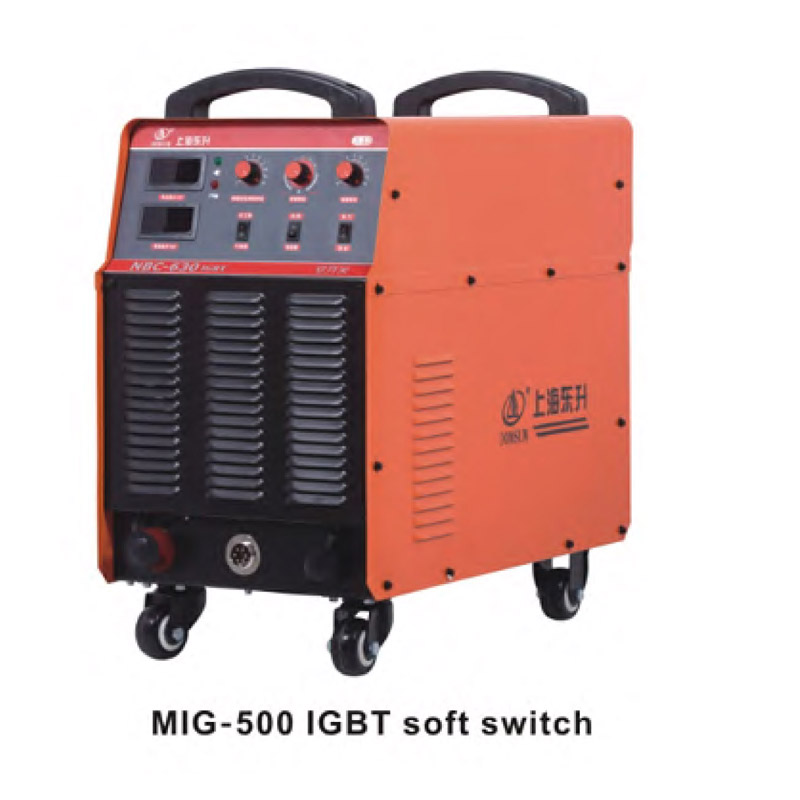

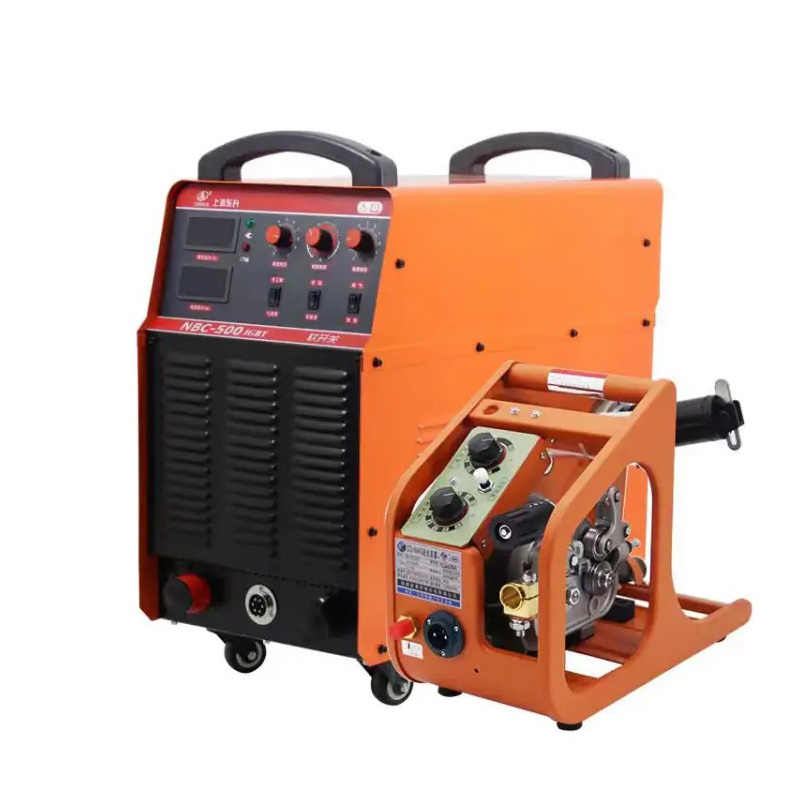

NBC-500 IGBT(soft swtich | host machine | industrial gradeIGBTdualmodule(100A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、highheavy duty rate,MMA/MAG 2 use | |
NBC-500 IGBTsoft swtichone set | 10Mwire,3M500Atorch,earth wire,regulator | industrial gradeIGBTdualmodule(100A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high duty cycle rate,MMA/MAG 2 use | |
NBC-500 IGBT(heavy industry) | host machine | heavy dutyindustrial grade,IGBTdualmodule(100A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high duty cycle,MMA/MAG 2 use |
|
NBC-500 IGBT(重heavy industry)one set | 10Mwire,3M500Atorch,earth wire,regulator | heavy dutyindustrial grade,IGBTdualmodule(100A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high duty cycle,MMA/MAG 2 use |
|
NBC-630 IGBT(soft swtich | host machine | heavy dutyindustrial grade,IGBTdualmodule(150A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high duty cycle,MMA/MAG 2 use |
|
NBC-630 IGBTsoft swtichone set | 10Mwire,3M500Atorch,earth wire,regulator | heavy dutyindustrial grade,IGBTdualmodule(150A),soft swtichtechnology,Main control board plug-in large board design,enoughcurrent、high duty cycle,MMA/MAG 2 use |
Model |
MIG-350IGBT | MIG-500IGBT | MIG-630IGBT |
Rated input voltage(V) | 3Phase 380v±15% | 3Phase 380v±15% | 3Phase 380v±15% |
Input Frequency (HZ) | 50/60 | 50/60 | 50/60 |
Rated input power(KVA) | 13.7 | 24.4 | 34.6 |
Rated input current (A) | 21 | 37 | 53 |
Duty Cycle(%) | 60 | 60 | 60 |
Welding current (A) | 60-350 | 60-500 | 60-630 |
Welding voltage(v) | 14-40 | 17-50 | 17-50 |
Efficiency(%) | 89 | 89 | 89 |
Power factor | 0.87 | 0.87 | 0.87 |
Wire Diameter (mm) | ø0.8- ø 1.2 | Ø1.0- ø 1.6 | Ø1.2- ø 1.6 |
CO2 gas flow(L/min) | 15-20 | 15-20 | 15-20 |
Weight (kg) | 30 | 40 | 50 |
Dimension(mm) | 580*300*570 | 630*320*645 | 670*350*670
|
