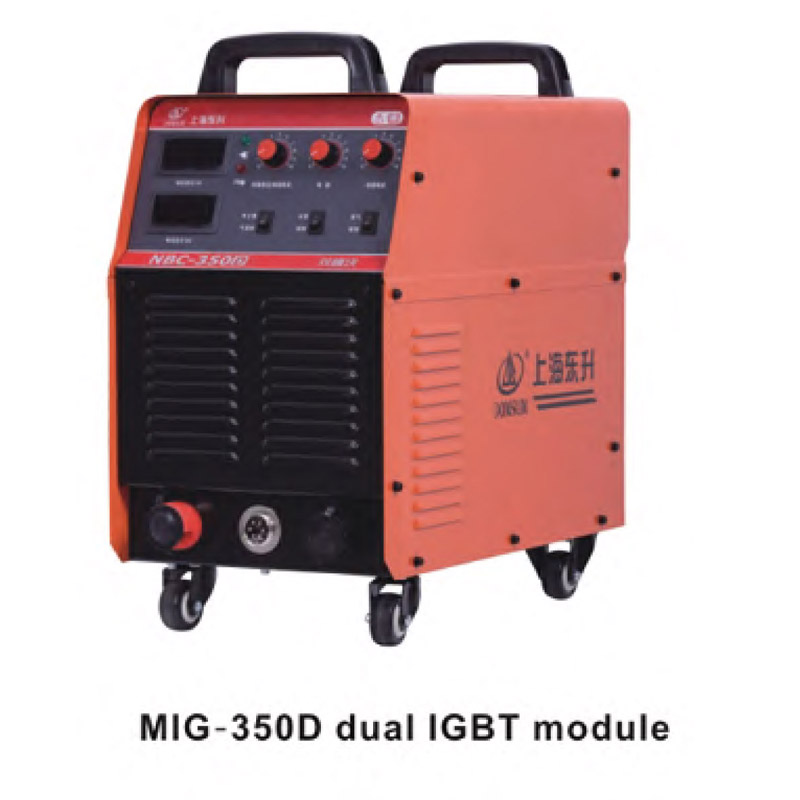

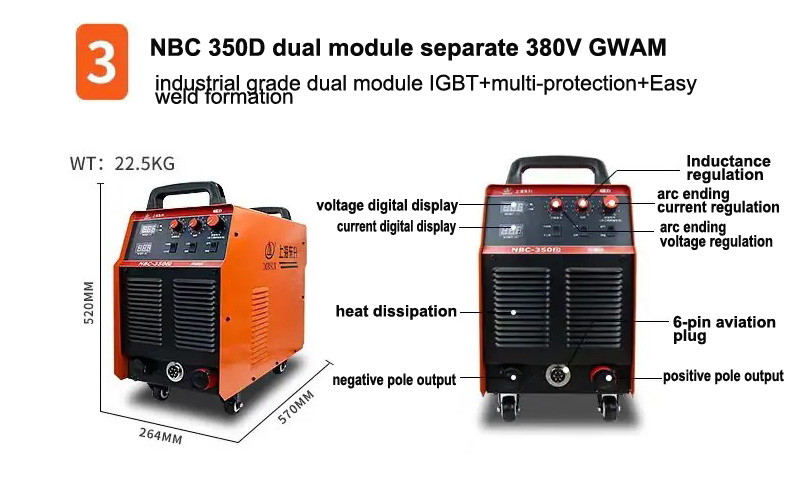

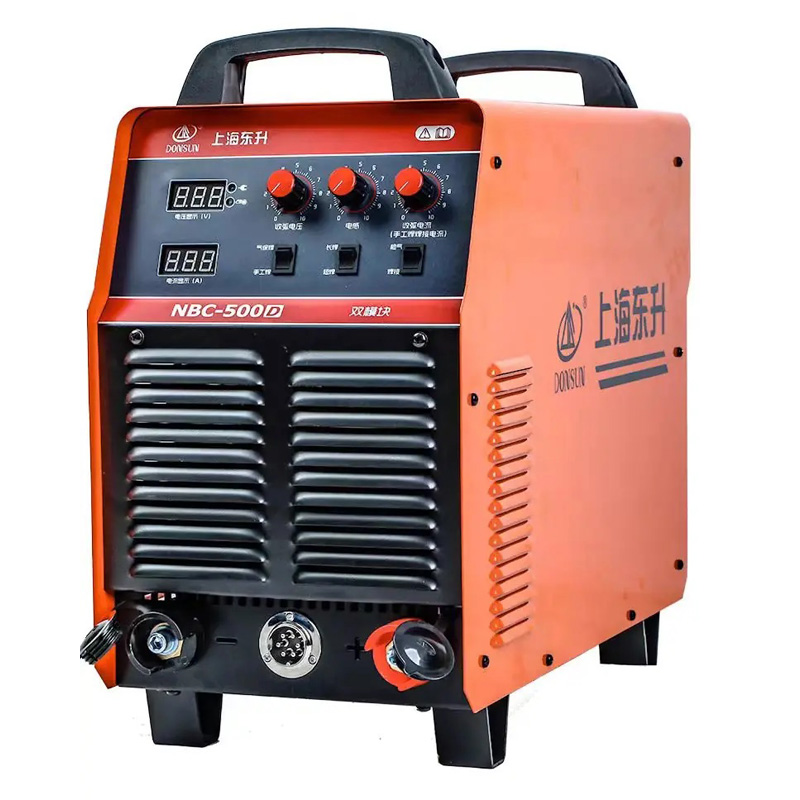

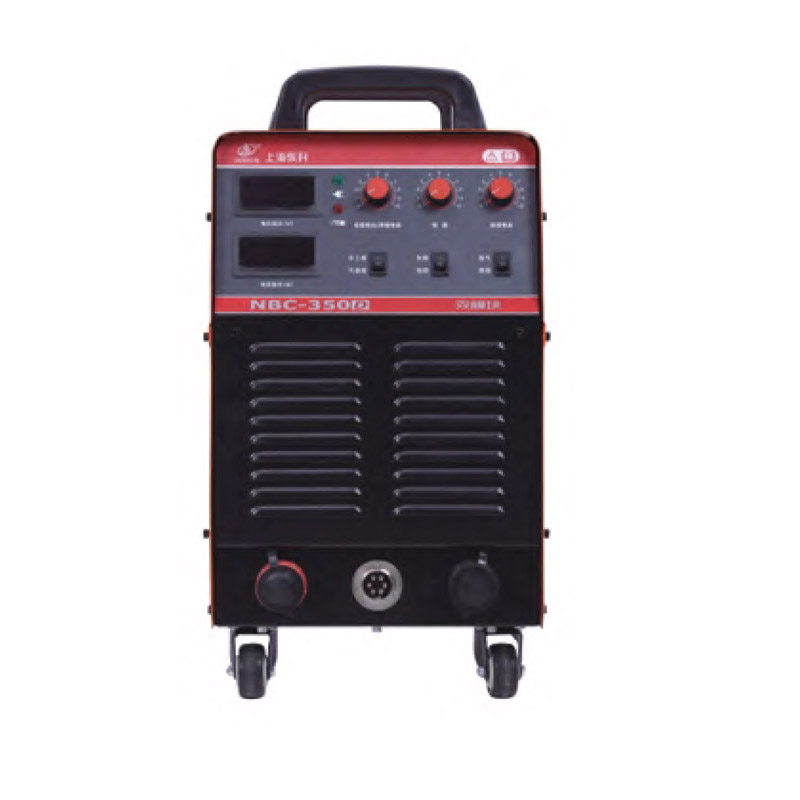

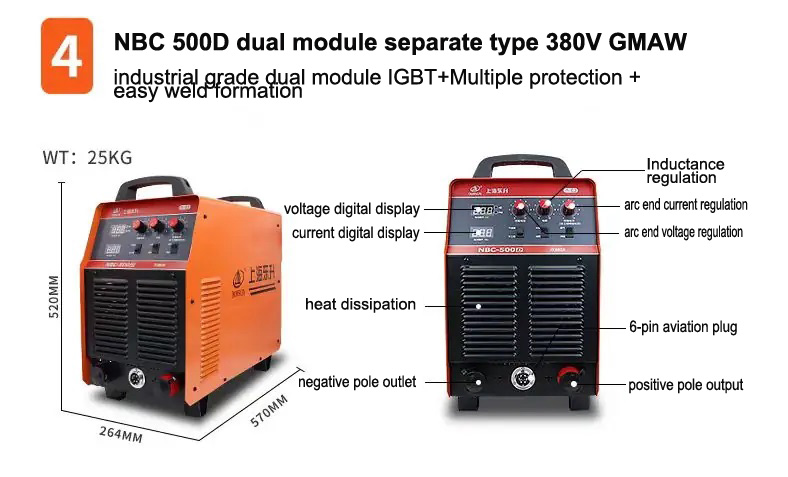

Shanghai Donsun Welding Group Technology Co.,Ltd NBC-350D NBC-500D MIG-350D/500D GMAW
Muitifunctional, efficient welding
- Advanced IGBT Module technology. Tri-proof air tube design,
high duty cycle, more reliable in bad environment.
- Simple and easy, with dual welding process MIG and MMA
(Stick).
Adaptable with generator, suitable for outdoor welding
Easy to match welding current and voltage, to achieve high
efficiency welding.
Trigger Control-4T (Latch) eliminates operator fatigue.
With over-loading and over-heating protection,helps prevent
machine damage.
Inverter technology
Intelligent air cooling
Over load protection
ARC/MIG dual functional
| Model | MIG-350D | MIG-500D | ||
| Rated input voltage(V) | AC380V±15% 3P | AC380V±15% 3P | ||
| MIG | MMA | MIG | MMA | |
| Input Frequency (HZ) | 50/60 | 50/60 | ||
| Rated input power(KVA) | 14 | 15 | 19 | 16.7 |
| Rated input current (A) | 28.4 | 30.8 | 38.7 | 34.1 |
| No load voltage(V) | 72 | 74 | 72 | 74 |
| Welding current (A) | 50-350 | 30-350 | 50-500 | 30-500 |
| Welding voltage(v) | 15.5-31.5 | 21.2-34 | 15.5-39 | 21.2-40 |
| Duty Cycles(%) | 350A 60% | 500A 60% | ||
| 275A 100% | 400A 100% | |||
| Wire Diameter (mm) | 0.6-1.2 | 0.6-1.6 | ||
| Weight (kg) | 21.6 | 25 | ||
| Power factor | 0.7 | 0.7 | ||
| Insulation Glass | H | H | ||
| Efficiency | ≥85% | ≥85% | ||
| Protection class | IP21S | IP21S | ||
| Cooling | Air | Air | ||
| Dimension(mm) | 570*260*520 | 580*290*560 | ||
