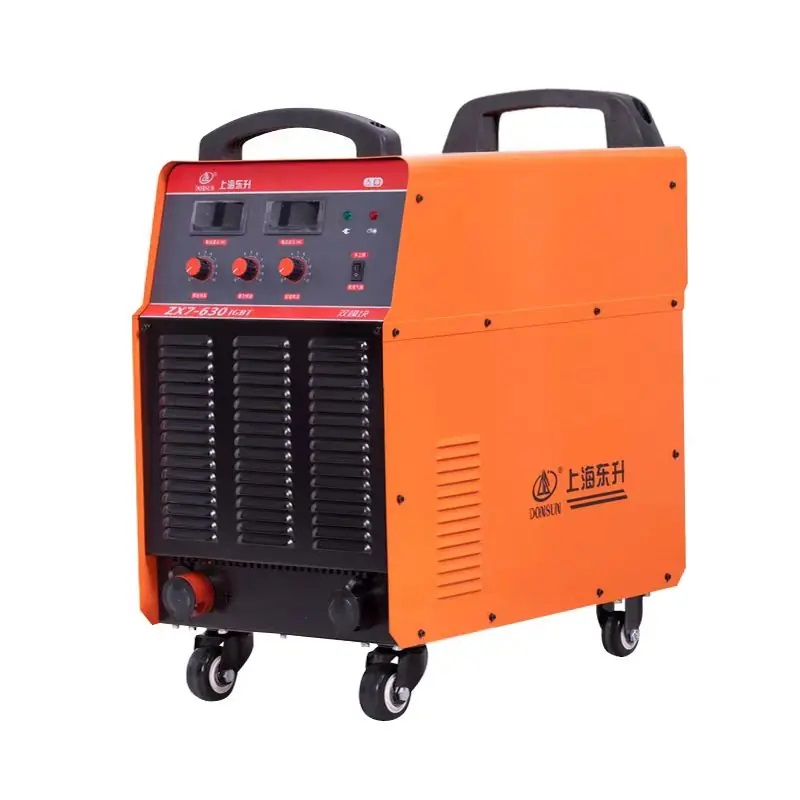

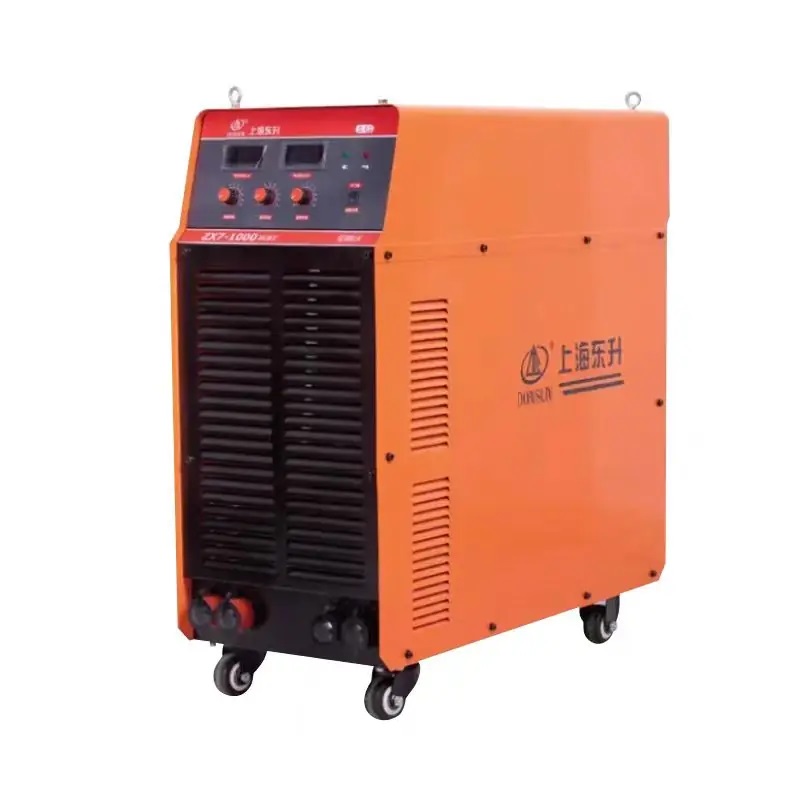

SHANGHAI DONSUN ZX7 ARC-630/800/1000/1250IGBT series hand welding

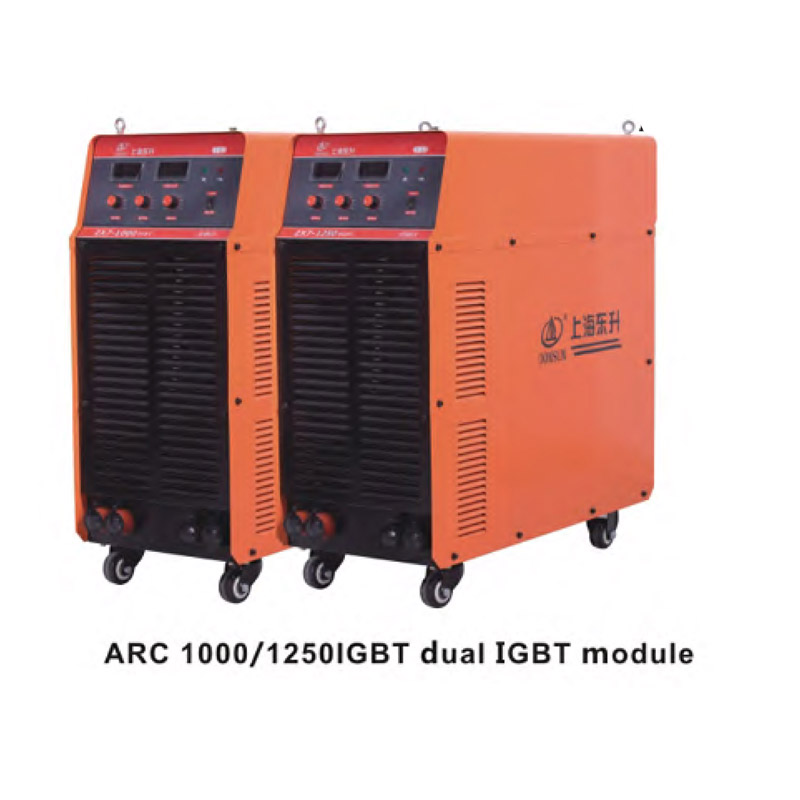

ARC-630/800/1000/1250IGBT series
INDUSTRIAL, MULTIFUNCTION, HIGH DUTY CYCLE
- Advanced IGBT Module technology ,Tri-proof air
tube design, high duty cycle, more reliable in bad
environment.
- VRD function, it safe for Welders.
- ARC force and Hot start adjustable, easy to striking
the arc.
- Auto-Protection against over-voltage, over-current
and over-heated.
- Easy to operate – Calibrated current control knob
makes procedure setting simple and easy
Inverter technology
Intelligent air cooling
Over load protection
VRD
ARC/ARC GOUGING

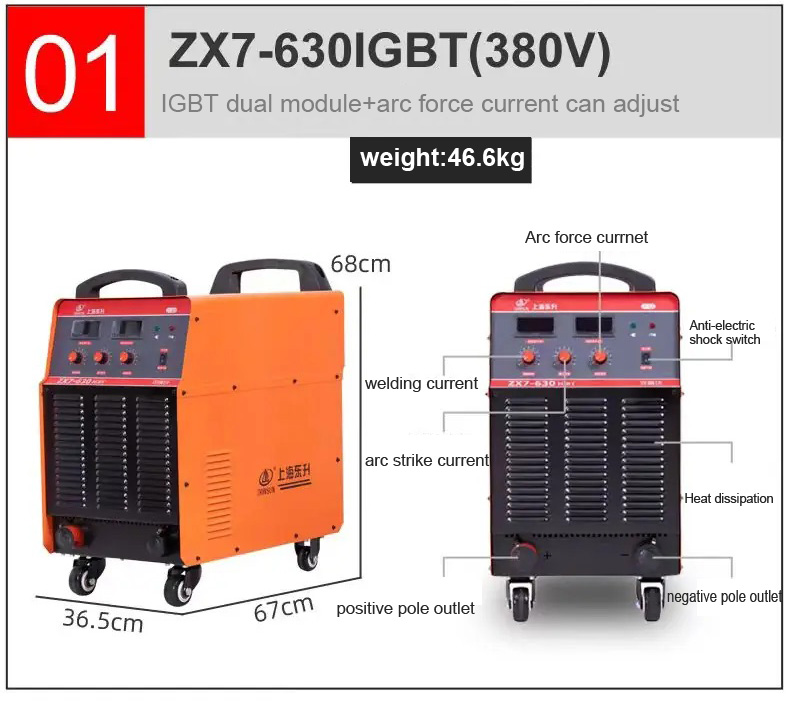

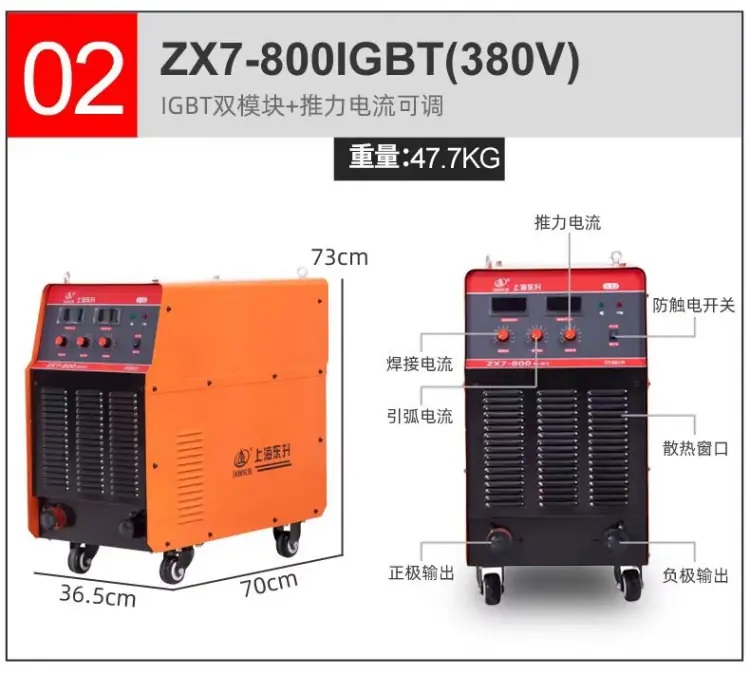

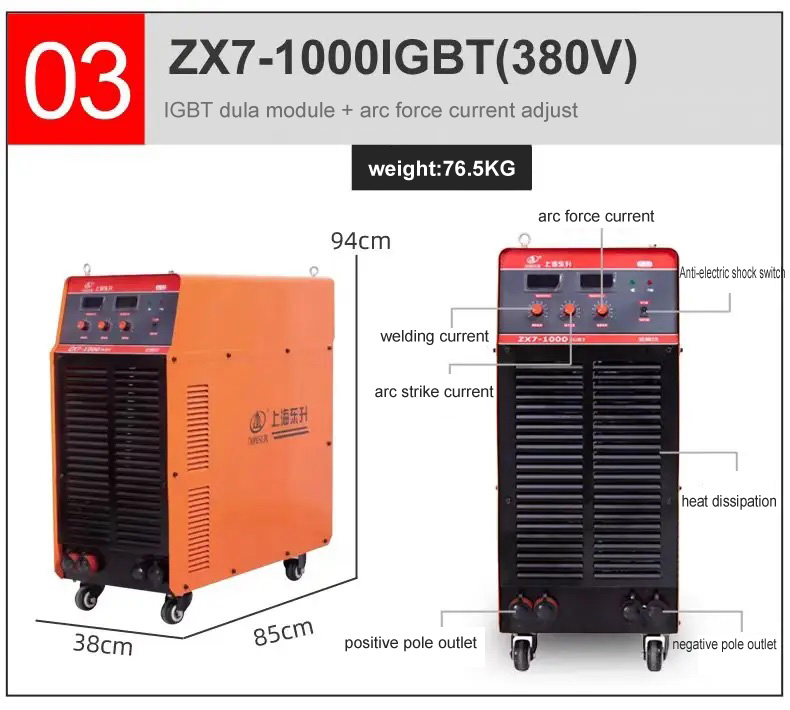

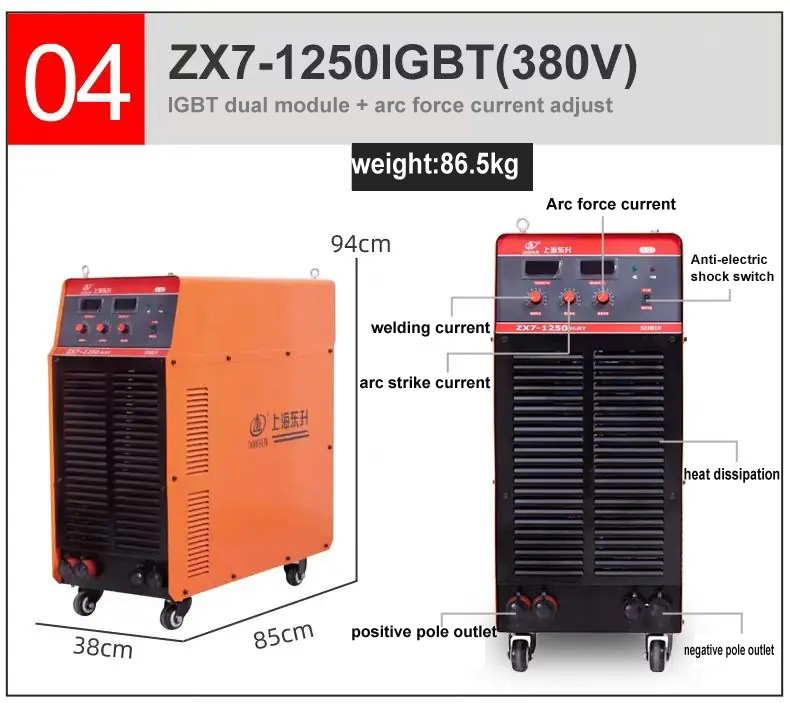

Model | MMA-630IGBT | MMA-800IGBT | MMA-1000IGBT | MMA-1250IGBT |
Rated input voltage(V) | 3P 380V ±15% | 3P 380V ±15% | 3P 380V ±15% | 3P 380V ±15% |
Input frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
Rated input capacity(KVA) | 35 | 46 | 5 | 55 |
Rated input current (A) | 52 | 65 | 83 | 105 |
Duty cycle (%) | 60 | 60 | 60 | 60 |
No-load voltage(V) | 90 | 90 | 90 | 90 |
Current range (A) | 50-320 | 60-800 | 60-1000 | 60-1250 |
Voltage range(V) | 22-50 | 22-50 | 22-50 | 22-50 |
Efficiency (%) | 89 | 89 | 89 | 89 |
Power factor | 0.95 | 0.95 | 0.95 | 0.95 |
Rod diameter(mm) | Ø6- Ø10 | Ø6- Ø12 | Ø6- Ø16 | Ø6- Ø18 |
Weight (kg) | 46.6 | 47.7 | 76.5 | 86.5 |
Dimension(mm) | 670*365*680 | 700*365*730 | 850*380*940 | 850*380*940 |
