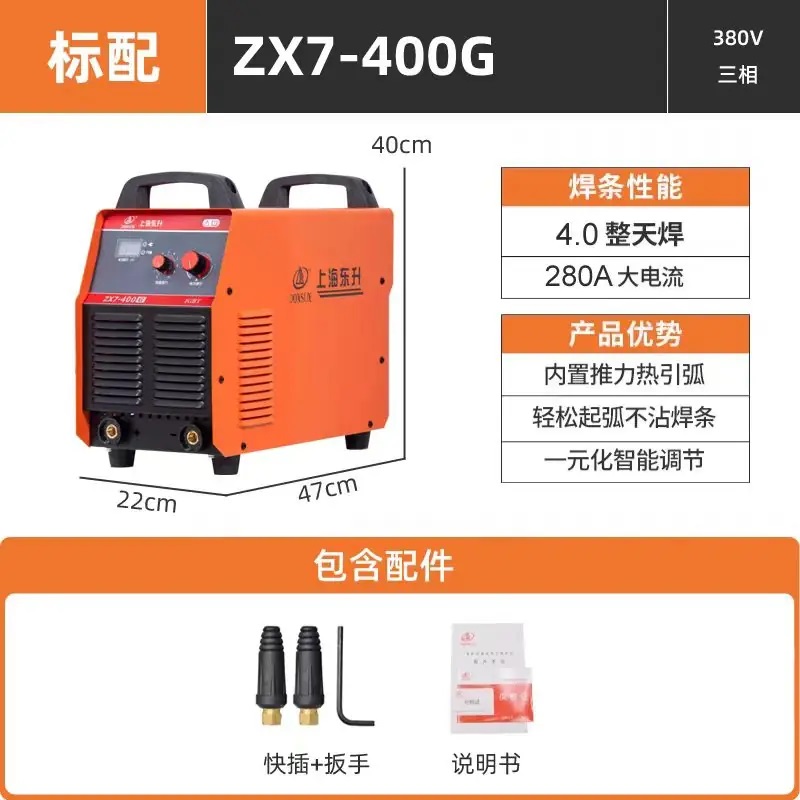

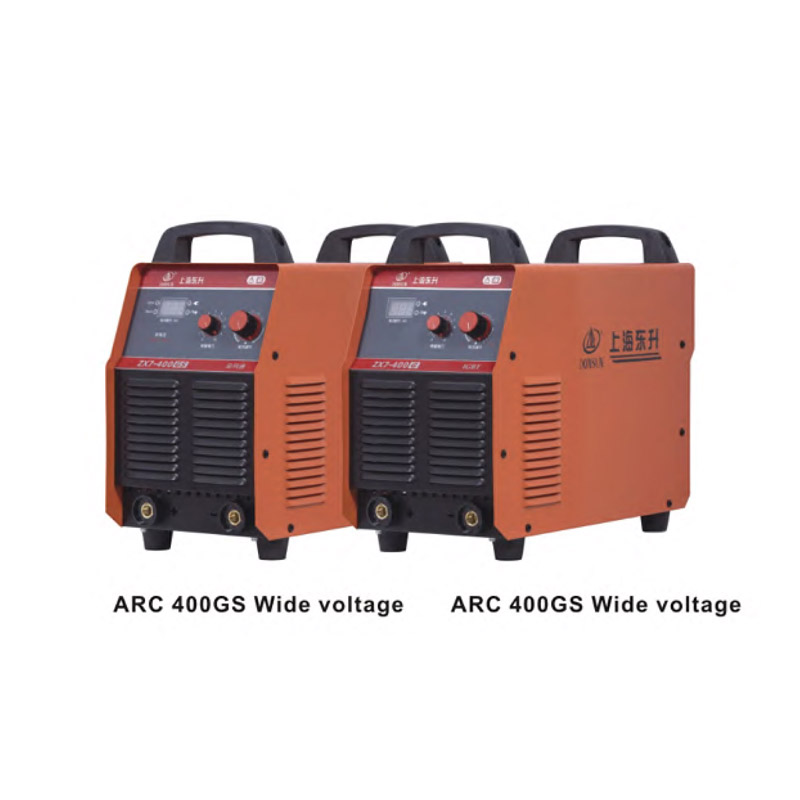

ZX7-315GS/400GS/400G



Adaptive voltage, easy current matching



IGBT technology

ARC force and hot start adjustable, easy to striking the arc

Auto-protection against over-voltage, over-current and over-heated.

VRD function, it safe for welders.

Wide range for input voltage, suitable for 220V/380V





Inverter technology

Over heat /over current protection

VRD

Intelligent air cooling



Model MMA-315GS MMA-400GS MMA-400G
Rated input voltage(V) 1P 220V/380V±15% 1P 220V/380V±15% 3P 380V±15%
Input frequency(HZ) 50/60 50/60 50/60
Rated input capacity(KVA) 7.5 9 9
Rated input current (A) 25/20 28/24 20
Duty cycle (%) 40 40 40
No-load voltage(V) 82/70 82/70 70
Current range (A) 20-200/20-240 20-200/20-280 20-280
Voltage range(V) 20-28/20-30 20-28/20-31.2 20-31.2
Efficiency (%) 89 89 89
Power factor 0.93 0.93 0.93
Rod diameter(mm) Ø1.6- Ø3.2 Ø1.6- Ø4.0 Ø1.6- Ø4.0
Weight (kg) 7.9 11.5 11
Dimension(mm) 430*210*390 470*220*400 470*220*400
